LM2200

WHEEL LOADER

LM2200

Loading Bucket Capacity

1.2m³/ batch

Machinery weigh

4500kg

Geometrical Drum

2200L

Engine power

Yunnei YN27GBZ  55kW

Field of application:

1. Variety of products: For different market demands, we design various models from 1.2m³. The body has integrated and hinged type, can easily cope with all kinds of difficult working conditions.

2. Integrated Function system: Feeding, mixing, transporting and other functions are combined into one, optimizing the use of both manpower and materials.

3. Operation system: Fully functional and spacious cab with electronic control, air conditioning and reverse video, automatic loading and unloading system, which helps the driver to finish all the work independently.

4. Cooling system: Equipped with controllable oil cooler, which can heat the hydraulic oil according to the temperature, to ensure the continuous operation of the machine.

5. Quality Assurance: Adopting high-quality core parts, such as plunger motor from Japan, worm gears and worm shafts from the US, military-quality reducers and pumps etc, with an extra-long warranty.

Technical parameter

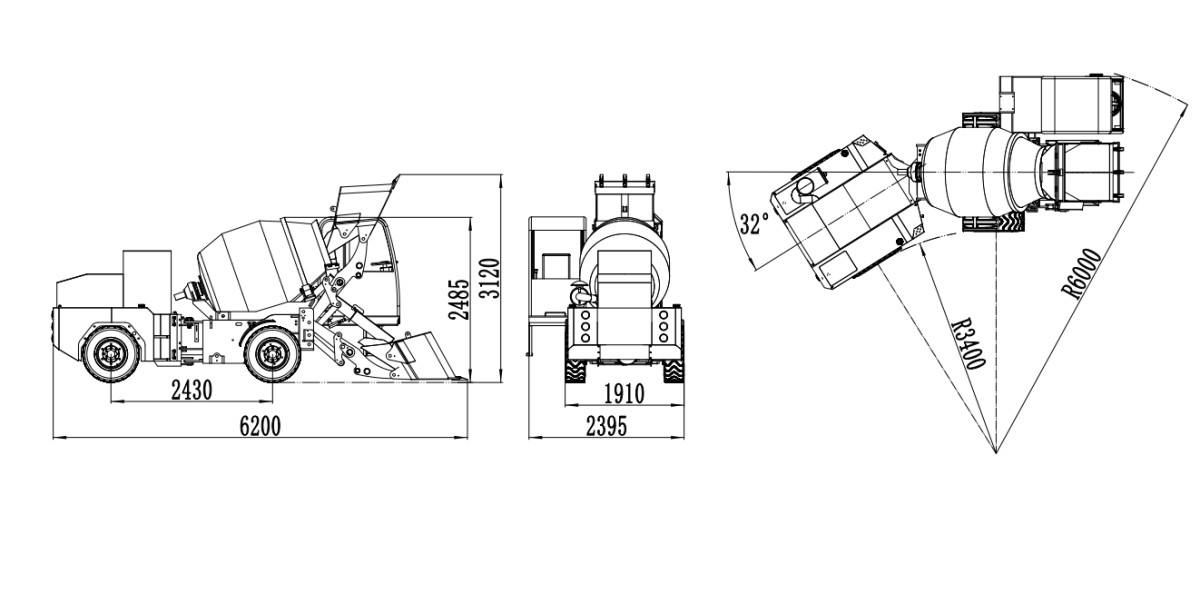

Machine size
6200*2395*3120mm
Wheelbase2430mm
Machine weight4500kg
Min. turning radium3400mm
EngineYunnei YN27GBZ  55kW
Tires25.5-16
Drum rotation speed18 rpm/ min
Concrete yield1.2m³/ batch
Fuel tank110L
Hydraulic oil capacity110L
The volume of geometrical  drum2200L
Water tank175L
Tank rotation angle270°



Gallery

IMAGES

LM2200

LM2200


Technology support

Loading Bucket Capacity

1.2m³/ batch

Machinery weigh

4500kg

Geometrical Drum

2200L

Engine power

Yunnei YN27GBZ  55kW
